SGS

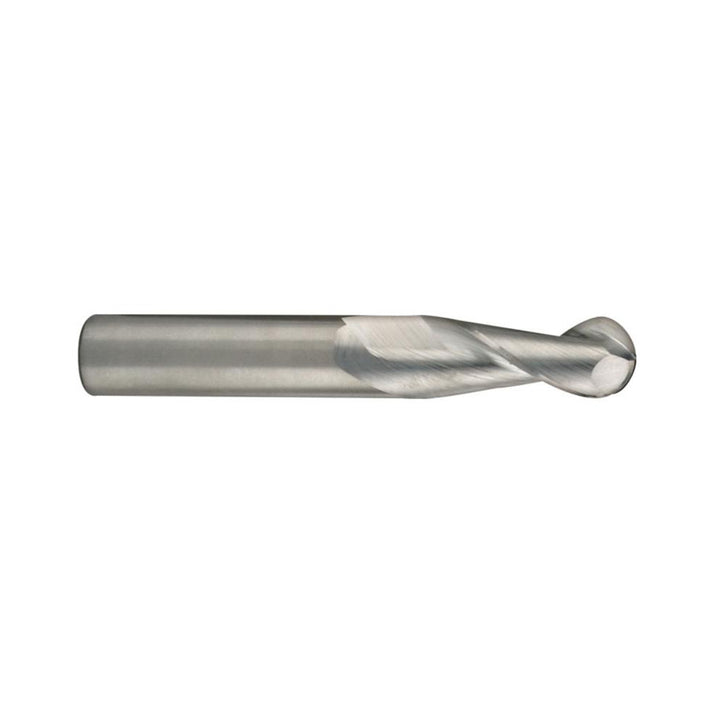

1/4" 2-Flute Solid Carbide Ball End Mill - SGS 34632

MFR# 34632Series 47B

$35.03List $44.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The SGS 34632 is a 1/4 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 47B.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in3/4

Length typeRegular

Manufacturers catalog number34632

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance-0.0001 to -0.0004 in

Number of flutes2

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/4

Shank diameter tolerance+0.00000 to -0.00035 in

Single or double endSingle

Variable helixNo

Variable indexNo
