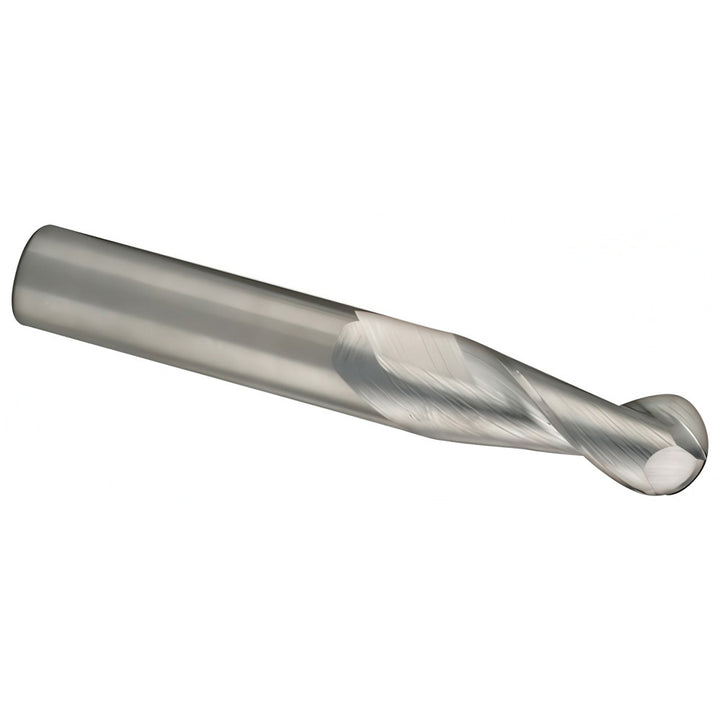

1/2" 2-Flute Solid Carbide Ball End Mill - SGS 34635

SGS

1/2" 2-Flute Solid Carbide Ball End Mill - SGS 34635

MFR# SGS-34635Cat# 34635Series 47B

$71.55List $91.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 34635 is a 1/2 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/4 overall length. Series 47B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-1/4
Length typeRegular
Manufacturers catalog number34635
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/2
Mill diameter tolerance-0.0001 to -0.0004 in
Number of flutes2
Overall length in3-1/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter tolerance+0.00000 to -0.00043 in
Single or double endSingle
Variable helixNo
Variable indexNo
