3/4" 2-Flute Solid Carbide Ball End Mill - SGS 34637

SGS

3/4" 2-Flute Solid Carbide Ball End Mill - SGS 34637

MFR# 34637Series 47B

$240.81List $308.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

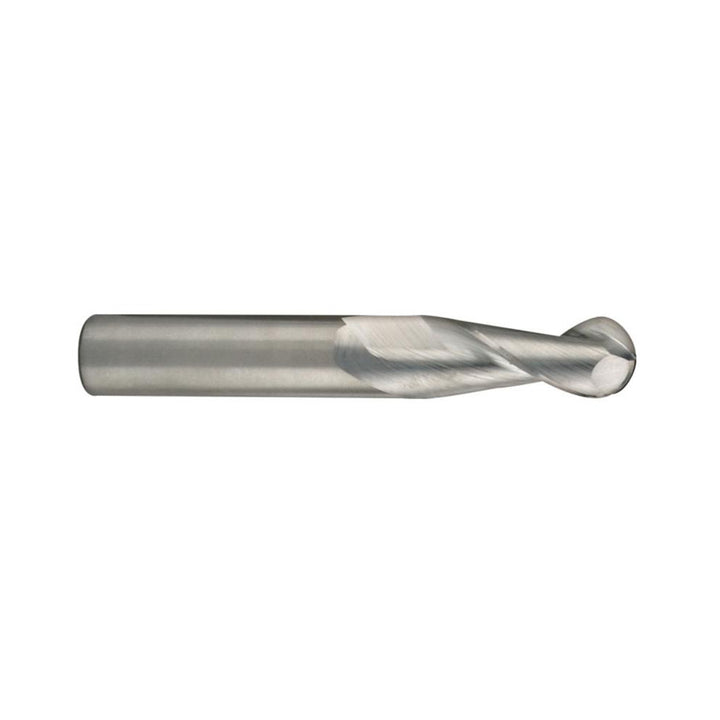

The SGS 34637 is a 3/4 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series 47B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-5/8
Length typeRegular
Manufacturers catalog number34637
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/4
Mill diameter tolerance-0.0001 to -0.0004 in
Number of flutes2
Overall length in4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/4
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexNo
