SGS

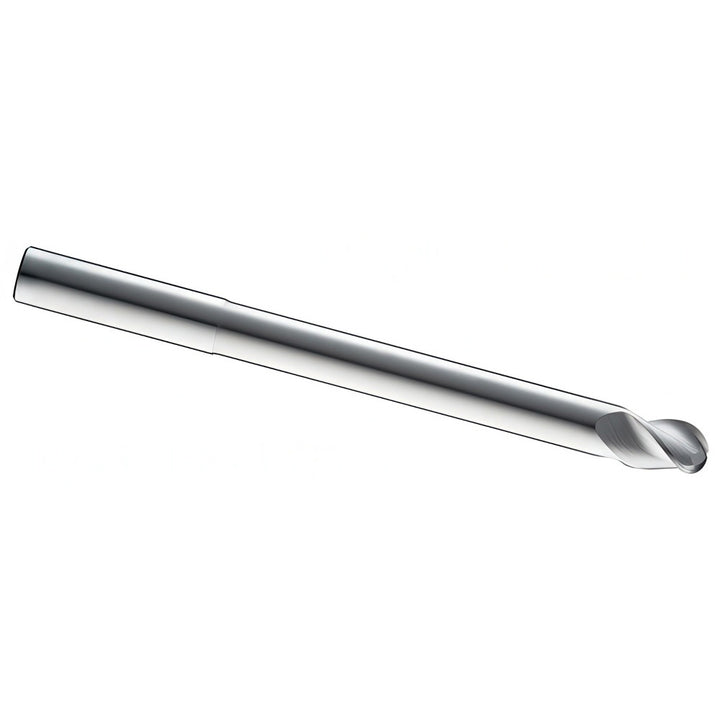

1/4" 2-Flute Solid Carbide Ball End Mill - SGS 34650

MFR# 34650Series 47EB

$73.83List $94.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The SGS 34650 is a 1/4 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 3/8 length of cut, 4 overall length. Series 47EB.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in3/8

Length typeLong

Manufacturers catalog number34650

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance-0.0001 to -0.0004 in

Neck diameter0.2350

Neck length in1-3/4

Number of flutes2

Overall length in4

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Shank diameter in1/4

Shank diameter tolerance+0.00000 to -0.00035 in

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
