SGS

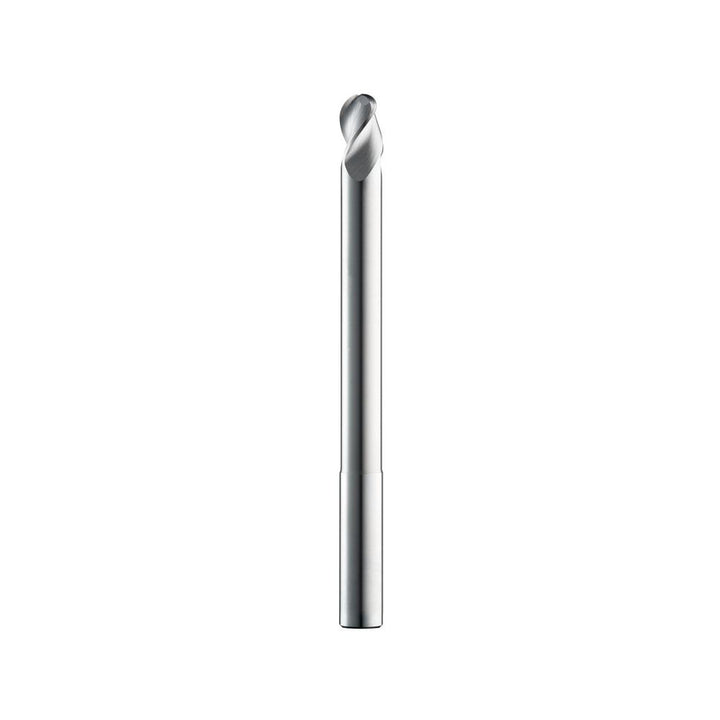

3/4" 2-Flute Solid Carbide Ball End Mill - SGS 34656
MFR# 34656Series 47EB
$471.95List $594.77
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes2
MaterialSolid Carbide
CoatingUncoated
Description
The SGS 34656 is a 3/4 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 1 length of cut, 6 overall length. Series 47EB.
Specifications
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1
Length typeLong
Manufacturers catalog number34656
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/4
Mill diameter tolerance-0.0001 to -0.0004 in
Neck diameter0.7350
Neck length in1-1/2
Number of flutes2
Overall length in6
Primary workpiece materialNon-Ferrous Metal
Reach length in2-1/2
Shank diameter in3/4
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexNo
