SGS

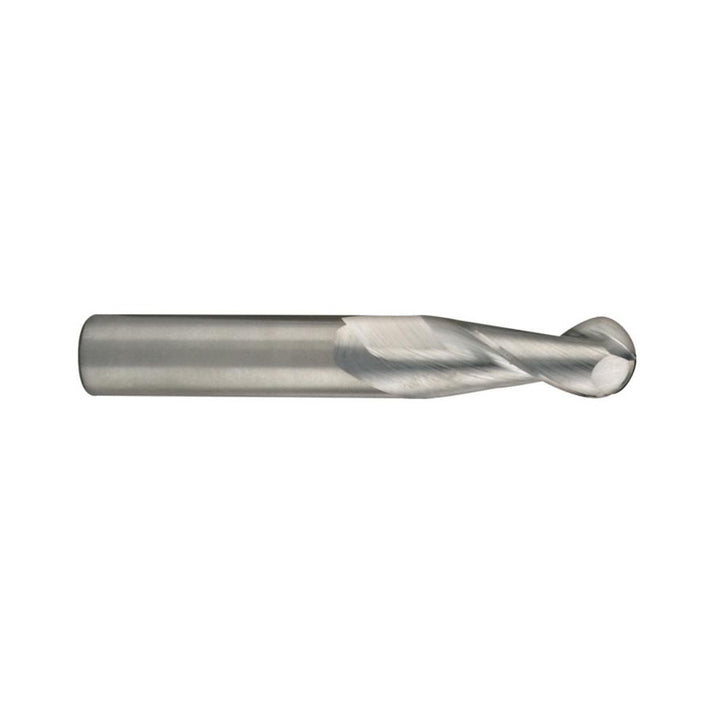

5/16" 2-Flute Solid Carbide Ball End Mill, TiB2 - SGS 34672

MFR# 34672Series 47B

$53.46List $68.56 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 34672 is a 5/16 2-flute Solid Carbide (Micrograin) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 13/16 length of cut, 2-1/2 overall length. Series 47B.

Specifications

ChipbreakerNo

Coating finishTiB2

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in13/16

Length typeRegular

Manufacturers catalog number34672

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in5/16

Mill diameter tolerance-0.0001 to -0.0004 in

Number of flutes2

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/16

Shank diameter tolerance+0.00000 to -0.00035 in

Single or double endSingle

Variable helixNo

Variable indexNo
