SGS

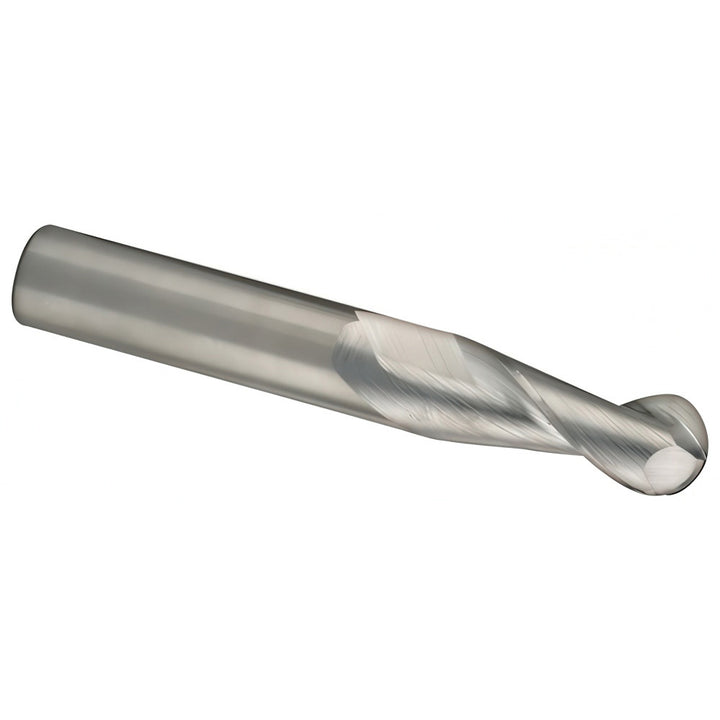

1/2" 2-Flute Solid Carbide Ball End Mill, TiB2 - SGS 34674
MFR# 34674Series 47B
$92.90List $119.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 34674 is a 1/2 2-flute Solid Carbide (Micrograin) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/4 overall length. Series 47B.
Specifications
ChipbreakerNo
Coating finishTiB2
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-1/4
Length typeRegular
Manufacturers catalog number34674
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/2
Mill diameter tolerance-0.0001 to -0.0004 in
Number of flutes2
Overall length in3-1/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter tolerance+0.00000 to -0.00043 in
Single or double endSingle
Variable helixNo
Variable indexNo
