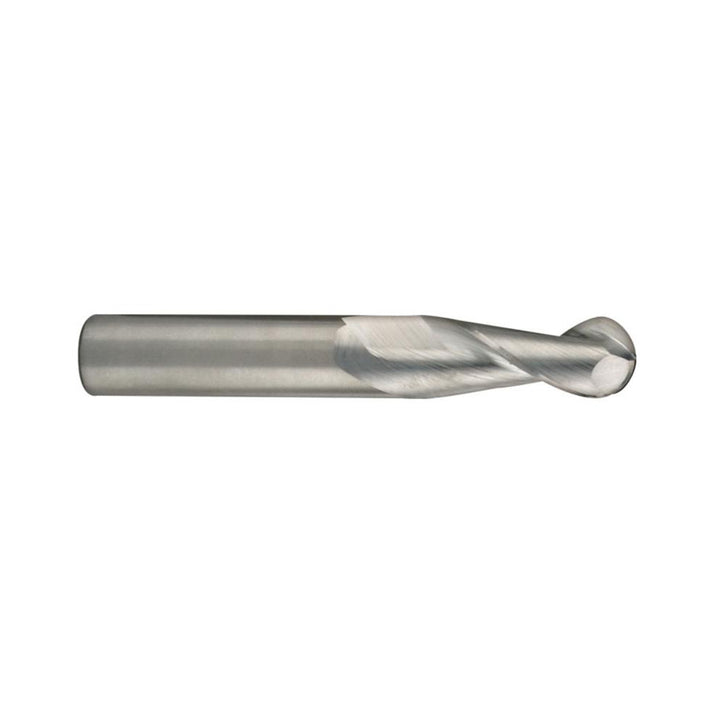

5/8" 2-Flute Solid Carbide Ball End Mill, TiB2 - SGS 34675

MFR# 34675Series 47B

$202.28List $259.44 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 34675 is a 5/8 2-flute Solid Carbide (Micrograin) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 1-5/8 length of cut, 3-3/4 overall length. Series 47B.

Specifications

ChipbreakerNo

Coating finishTiB2

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in1-5/8

Length typeRegular

Manufacturers catalog number34675

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in5/8

Mill diameter tolerance-0.0001 to -0.0004 in

Number of flutes2

Overall length in3-3/4

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank diameter tolerance+0.00000 to -0.00043 in

Single or double endSingle

Variable helixNo

Variable indexNo
