SGS

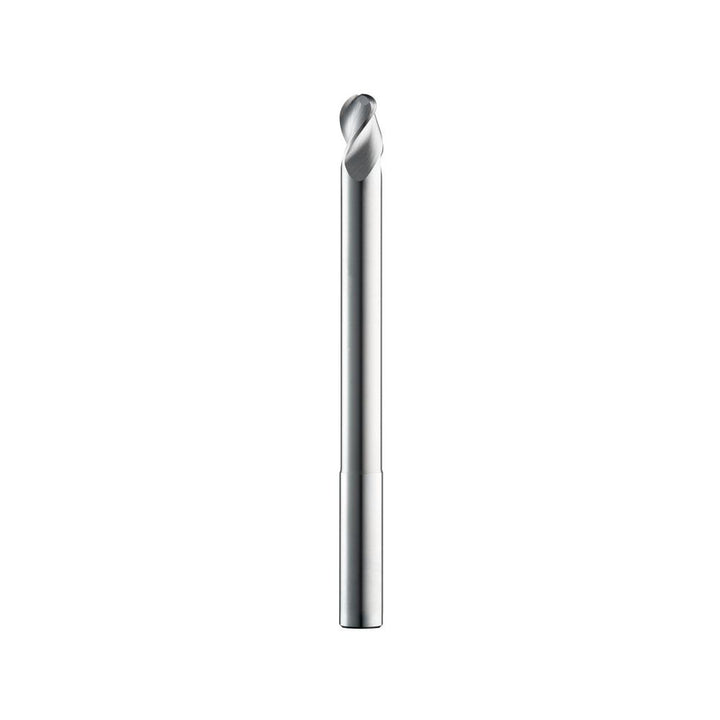

1/2" 2-Flute Solid Carbide Ball End Mill, TiB2 - SGS 34689
MFR# 34689Series 47EB
$229.59List $289.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 34689 is a 1/2 2-flute Solid Carbide (Micrograin) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 5/8 length of cut, 6 overall length. Series 47EB.
Specifications
ChipbreakerNo
Coating finishTiB2
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in5/8
Length typeLong
Manufacturers catalog number34689
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/2
Mill diameter tolerance-0.0001 to -0.0004 in
Neck diameter0.4850
Neck length in2-3/4
Number of flutes2
Overall length in6
Primary workpiece materialNon-Ferrous Metal
Reach length in3-3/8
Shank diameter in1/2
Shank diameter tolerance+0.00000 to -0.00043 in
Single or double endSingle
Variable helixNo
Variable indexNo
