SGS

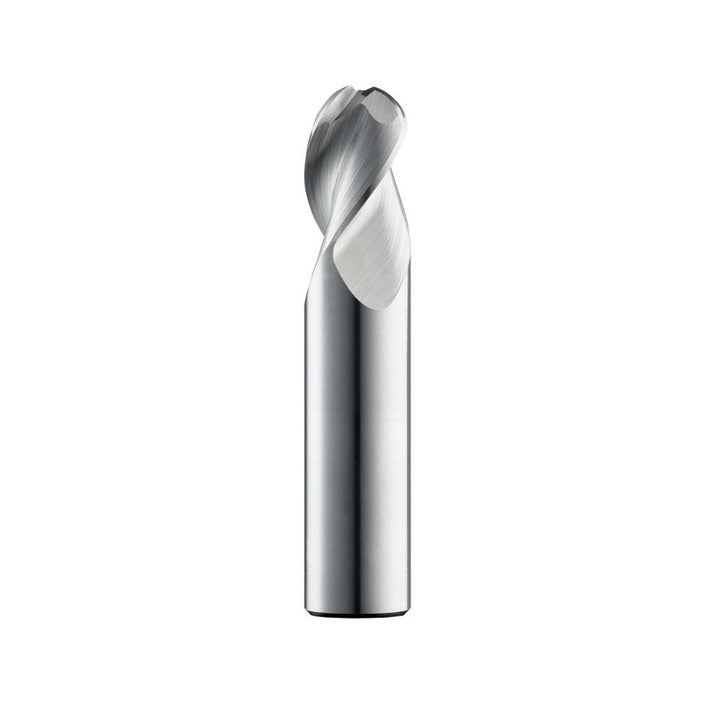

1/4" 3-Flute Solid Carbide Ball End Mill, TiB2 - SGS 34974

MFR# 34974Series 43

$71.02List $91.09 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 34974 is a 1/4 3-flute Solid Carbide (Micrograin) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 1 length of cut, 3 overall length. Series 43.

Specifications

ChipbreakerNo

Coating finishTiB2

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1

Length typeRegular

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.0000 to 0.00035 in

Number of flutes3

Overall length in3

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/4

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
