SGS

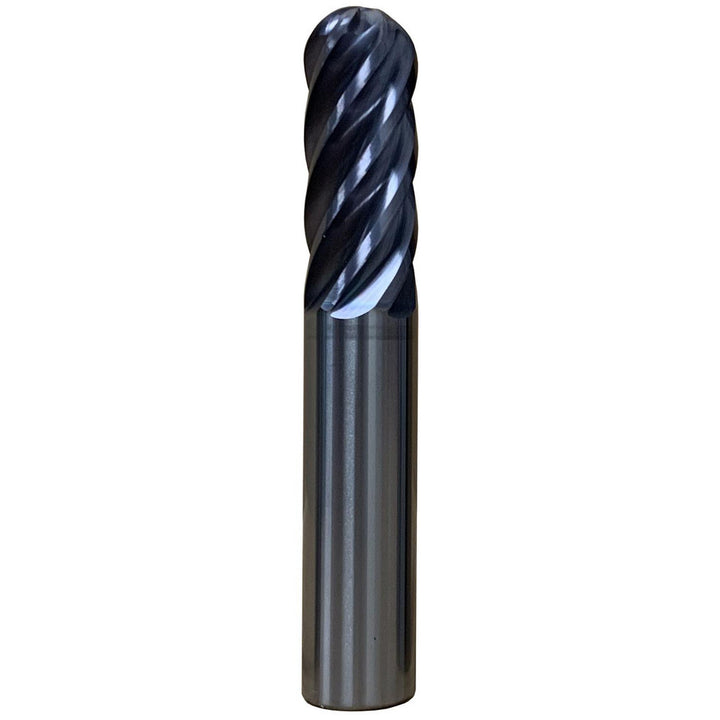

3/8" 6-Flute Solid Carbide Ball End Mill, Ti-NAMITE-X - SGS 35222

MFR# 35222Series 51B

$89.67List $115.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes6

MaterialSolid Carbide

CoatingTi-NAMITE-X

Description

The SGS 35222 is a 3/8 6-flute Solid Carbide (Micrograin) ball end mill with a Ti-NAMITE-X finish for longer tool life. 1 length of cut, 2-1/2 overall length. Series 51B.

Specifications

Coating finishTi-NAMITE-X

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Helix angle35 - 45

Helix styleHigh

Length of cut in1

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0016

Number of flutes6

Overall length in2-1/2

Shank diameter in3/8

Single or double endSingle

Variable helixNo

Variable indexYes
