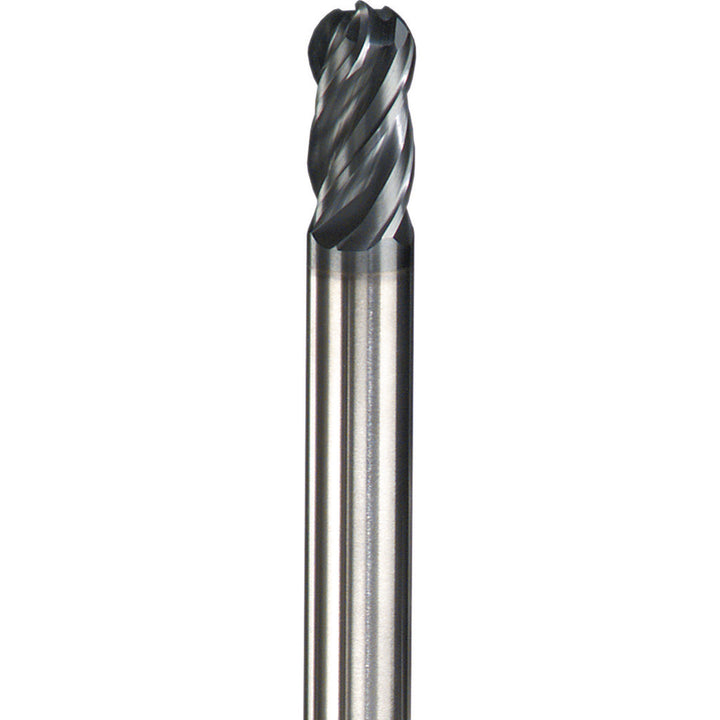

3/4" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36351

MFR# 36351Series Z1B

$274.88List $352.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 36351 is a 3/4 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-1/2 length of cut, 4 overall length. Series Z1B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angleVariable

Helix styleVariable

Length of cut in1-1/2

Length typeRegular

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/4

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in4

Shank diameter in3/4

Shank diameter tolerance+0.00000 to -0.00051 in

Single or double endSingle

Variable helixYes

Variable indexYes
