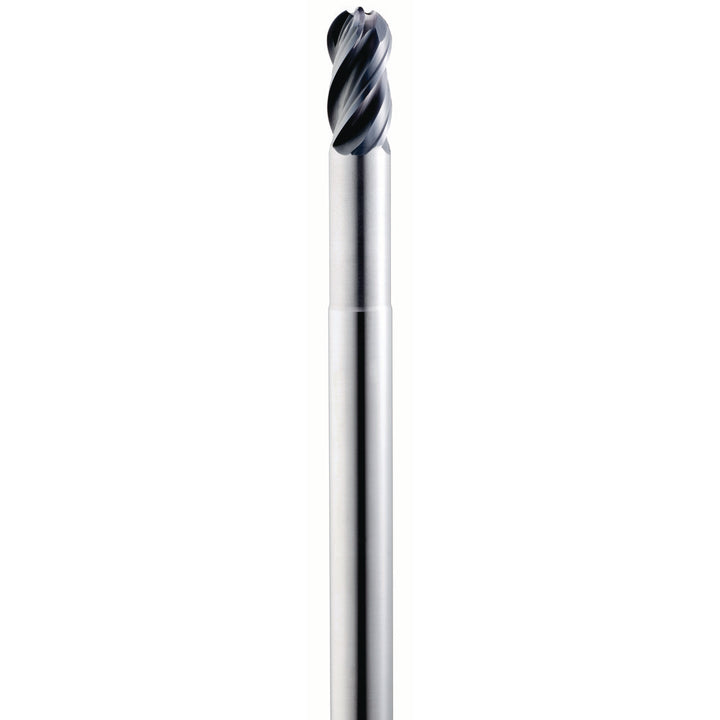

1" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36504

MFR# 36504Series Z1PLB

$573.52List $735.56 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 36504 is a 1 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-1/2 length of cut, 6 overall length. Series Z1PLB.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angleVariable

Helix styleVariable

Length of cut in1-1/2

Length typeLong

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1

Mill diameter tolerance+0.0000 to -0.0020 in

Neck diameter0.9800

Neck length in2-1/2

Number of flutes4

Overall length in6

Reach length in4

Shank diameter in1

Shank diameter tolerance+0.00000 to -0.00051 in

Single or double endSingle

Variable helixYes

Variable indexYes
