SGS

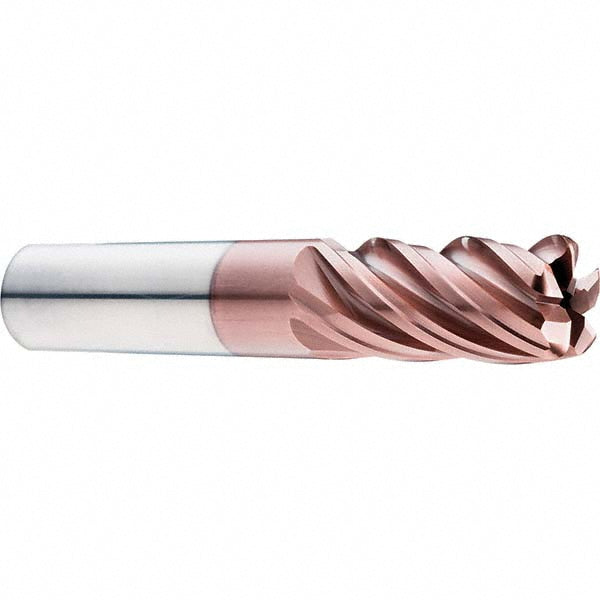

1/2" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - SGS 38534

MFR# 38534Series Z5C

$95.81List $122.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 38534 is a 1/2 5-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 3 overall length. Series Z5C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Helix styleMedium

Length of cut in5/8

Length typeRegular

Material gradeMicrograin

Maximum helix angle37

Mill diameter in1/2

Mill diameter tolerance+0.000000 to -0.001600 in

Number of flutes5

Overall length in3

PitchVariable

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle
