SGS

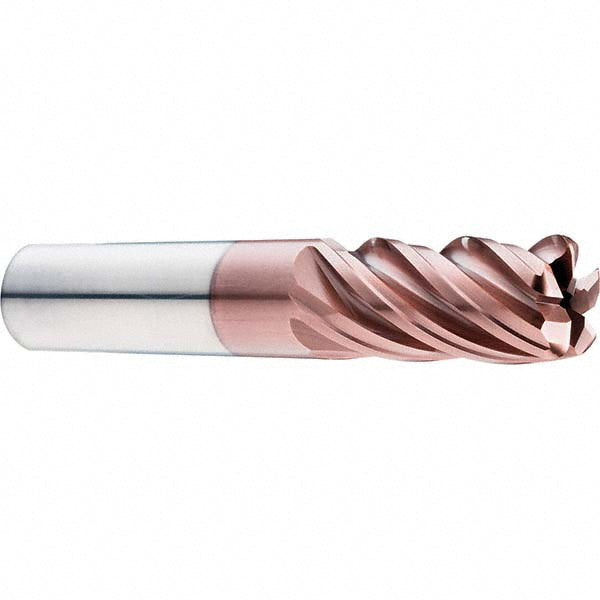

1/2" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - SGS 38540

MFR# 38540Series Z5C

$108.41List $139.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 38540 is a 1/2 5-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. 1 length of cut, 3 overall length. Series Z5C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0600

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Helix styleMedium

Length of cut in1

Length typeRegular

Material gradeMicrograin

Maximum helix angle37

Mill diameter in1/2

Mill diameter tolerance+0.000000 to -0.001600 in

Number of flutes5

Overall length in3

PitchVariable

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle
