SGS

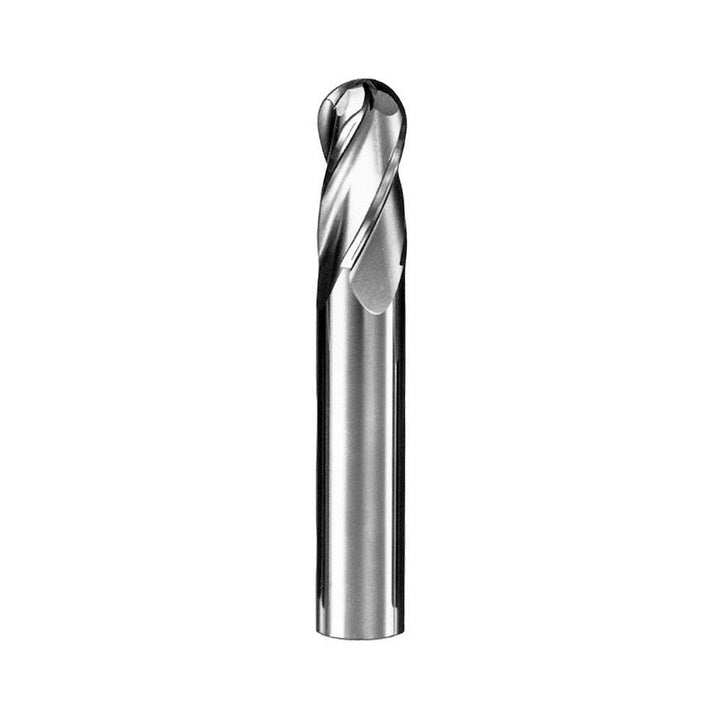

0.0394" 4-Flute Solid Carbide Ball End Mill - SGS 40106
MFR# 40106Series 1B
$17.81List $22.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingUncoated
Description
The SGS 40106 is a 0.0394 4-flute Solid Carbide (Micrograin) ball end mill. 1-1/2 overall length. Series 1B.
Specifications
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length typeRegular
Material gradeMicrograin
Mill diameter0.0394
Mill diameter tolerance+0.000 to -0.05 mm
Number of flutes4
Overall length in1-1/2
Shank diameter (mm)3.00
Shank diameter tolerance0.000 to 0.006 mm
Single or double endSingle
Variable helixNo
Variable indexYes
