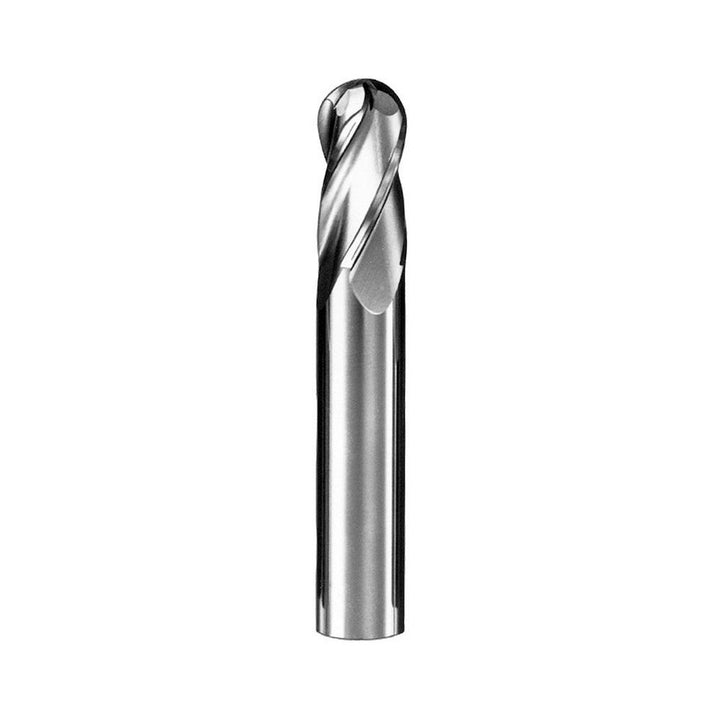

0.1181" 4-Flute Solid Carbide Ball End Mill - SGS 40122
MFR# 40122Series 01B
$15.96List $20.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 40122 is a 0.1181 4-flute Solid Carbide (Micrograin) ball end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 0.4724 length of cut. Series 01B.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.4724
Length typeStandard
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter0.1181
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)38.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter (mm)3.00
Shank diameter tolerance0.000/-0.006 mm
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
