SGS

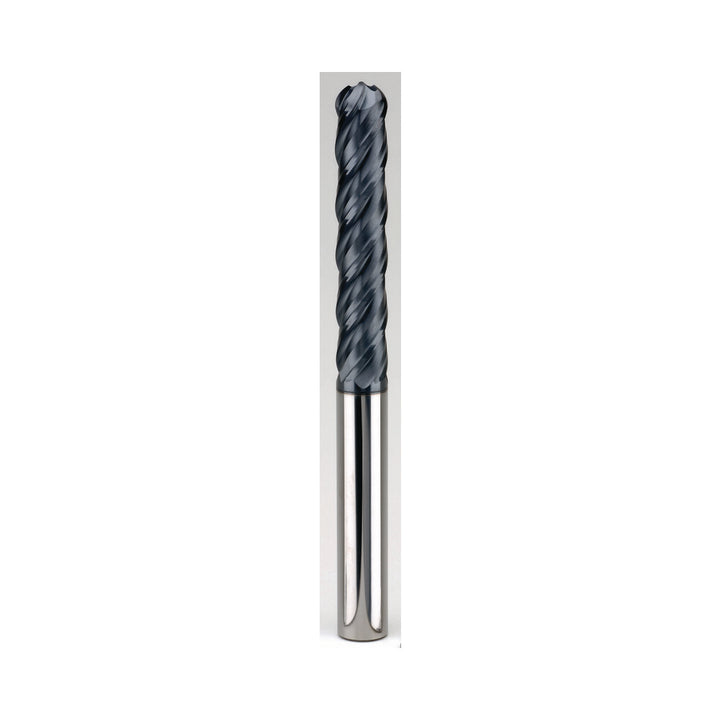

5/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 70463
MFR# 70463Series 7B
$233.24List $299.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The SGS 70463 is a 5/8 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 3 length of cut, 6 overall length. Series 7B.
Specifications
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Helix styleHigh
Length of cut in3
Length typeExtra Long
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in5/8
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in6
Shank diameter in5/8
Shank diameter tolerance+0.00000 to -0.00043 in
Single or double endSingle
Variable helixNo
Variable indexYes
