SGS

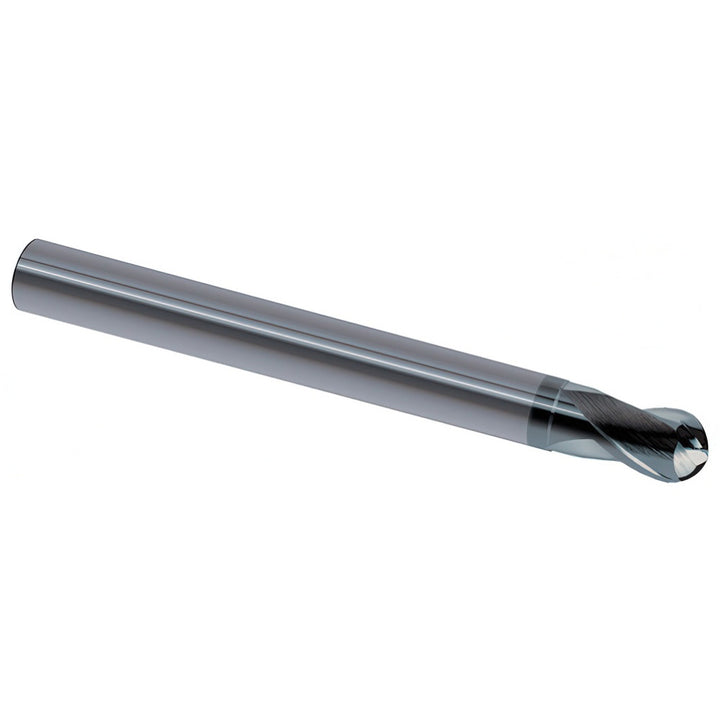

1/16" 2-Flute Solid Carbide Ball End Mill, AlTiN - SGS 93273

MFR# 93273Series 56B

$76.34List $97.92 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes2

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 93273 is a 1/16 2-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Suited for steel. 1/16 length of cut, 3 overall length. Series 56B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/16

Length typeRegular

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1/16

Mill diameter tolerance+0.000 to -0.001 in

Neck diameter0.0550

Neck length in1/16

Number of flutes2

Overall length in3

Primary workpiece materialSteel

Reach length in1/8

Shank diameter in1/4

Shank diameter tolerance+0.00000 to -0.00035 in

Single or double endSingle

Variable helixNo

Variable indexNo
