Supermill

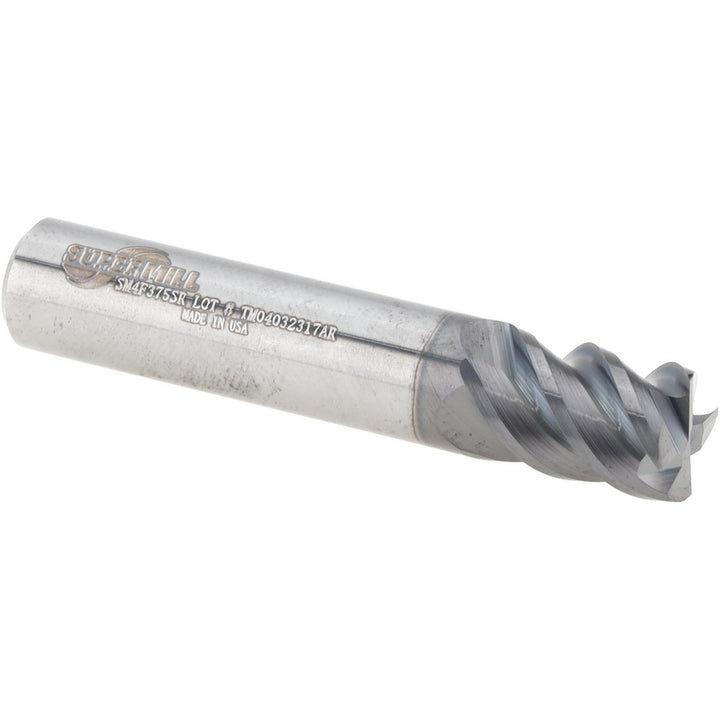

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251683

MFR# 5251683Cat# SM4FSeries SM4F

$46.17List $59.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5251683 is a 3/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1 length of cut, 2-1/2 overall length. Series SM4F.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1

Length typeShort

Manufacturers catalog numberSM4F

Material applicationSteel; Stainless Steel; Cast Iron

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/8

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
