Supermill

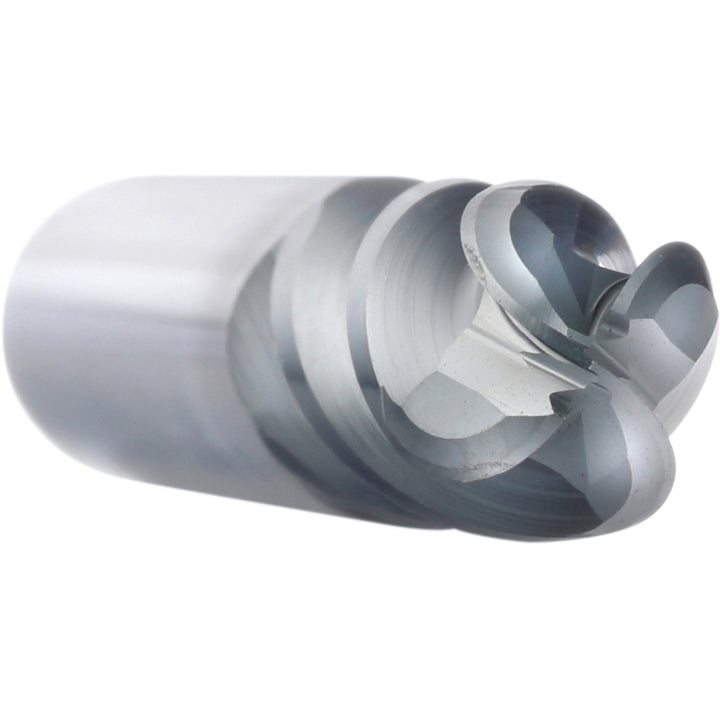

1/2" 4-Flute Solid Carbide Ball End Mill, AlCrN - Supermill 5253251

Name: 1/2" 4-Flute Solid Carbide Ball End Mill, AlCrN - Supermill 5253251
Brand: Supermill
SKU: 5253251
Price: 125.00 USD
Availability: LimitedAvailability

MFR# 5253251Cat# 43017Series XPVSB

$125.00List $157.54 Save 20%

Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5253251 is a 1/2 4-flute Solid Carbide (Micrograin) ball end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/4 length of cut, 3 overall length. Series XPVSB.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleVariable

Length of cut in1-1/4

Length typeStandard

Manufacturers catalog number43017

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Neck length0.0000

Nose radius0.2500

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length1.2500

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes
