9/16" 4-Flute Solid Carbide Square End Mill - Titan USA TC10536

Titan USA

9/16" 4-Flute Solid Carbide Square End Mill - Titan USA TC10536

MFR# TC10536

$89.85List $115.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

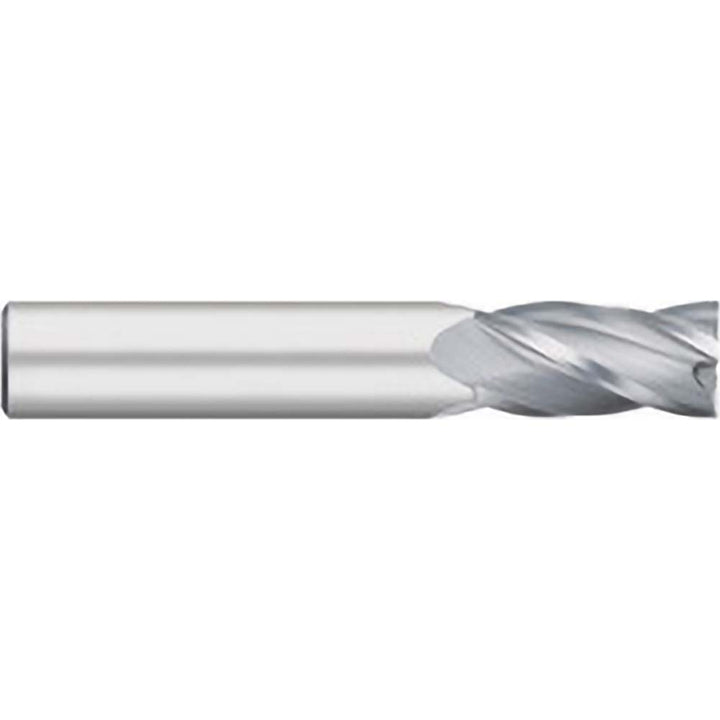

The Titan USA TC10536 is a 9/16 4-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter in9/16
Number of flutes4
Overall length in3-1/2
Shank diameter in9/16
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal9/16" 4-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6086338 $173.94 ProMax9/16" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-03614 $100.42 ProMax9/16" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-03614 $105.30 ProMax9/16" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-03612 $100.42
