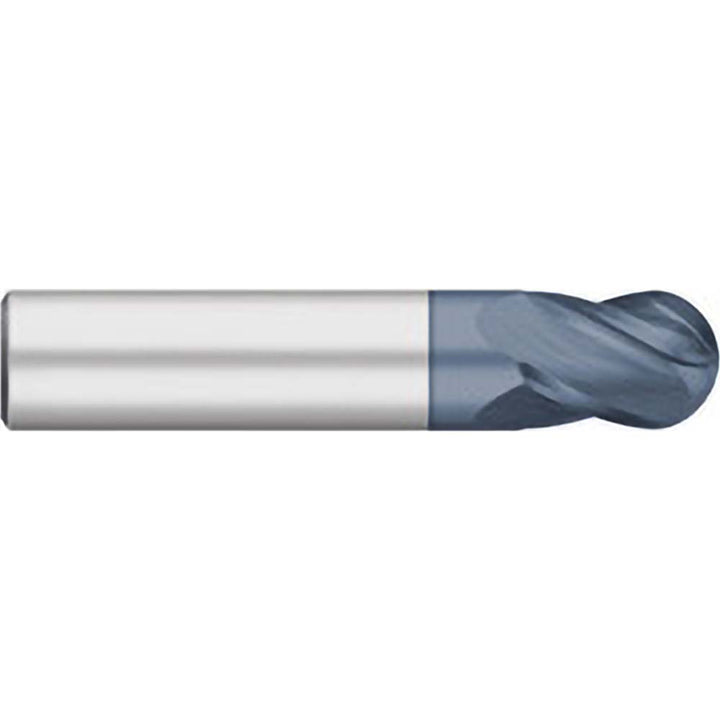

3/32in" 4-Flute Solid Carbide Ball End Mill, AlTiN - Titan USA TC11706

Titan USA

3/32in" 4-Flute Solid Carbide Ball End Mill, AlTiN - Titan USA TC11706

MFR# TC11706Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills

$15.10List $19.03 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC11706 is a 3/32in 4-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 3/16 length of cut, 1-1/2 overall length. Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/16
Length typeStandard
Manufacturers catalog numberTC11706
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/32in
Mill diameter tolerance+0.0000/-0.0010 in
Nose radius0.0469
Number of flutes4
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length0.1870
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
