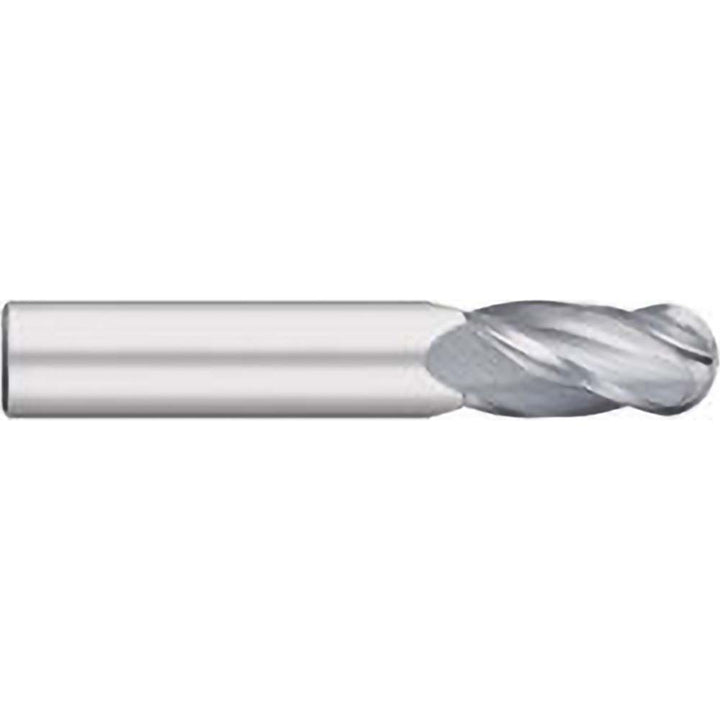

0.5512" 4-Flute Solid Carbide Ball End Mill - Titan USA TC12739

Titan USA

0.5512" 4-Flute Solid Carbide Ball End Mill - Titan USA TC12739

MFR# TC12739Series Carbide - 4 Flute - Ball - 30 Helix - Metric, General Purpose End Mills

$131.41List $165.61 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Titan USA TC12739 is a 0.5512 4-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series Carbide - 4 Flute - Ball - 30 Helix - Metric, General Purpose End Mills.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut (mm)32.00mm
Length typeStandard
Manufacturers catalog numberTC12739
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter0.5512
Mill diameter tolerance+0.00/-0.05 mm
Nose radius (mm)7.00
Number of flutes4
Overall length (mm)89.00mm
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length (mm)32.00
Shank diameter (mm)14.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
