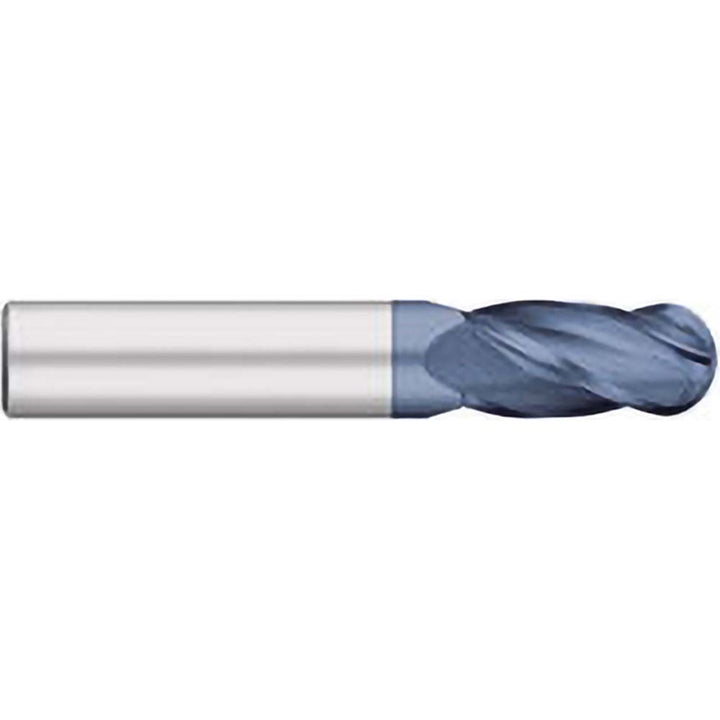

0.1575" 4-Flute Solid Carbide Ball End Mill, AlTiN - Titan USA TC12814

MFR# TC12814Series Carbide - 4 Flute - Ball - 30 Helix - Metric, General Purpose End Mills

$21.62List $26.42 Save 18%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Titan USA TC12814 is a 0.1575 4-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series Carbide - 4 Flute - Ball - 30 Helix - Metric, General Purpose End Mills.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut (mm)14.00

Length typeStandard

Manufacturers catalog numberTC12814

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter tolerance+0.00/-0.05 mm

Nose radius (mm)2.00

Number of flutes4

Overall length (mm)50.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length (mm)14.00

Shank diameter (mm)4.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
