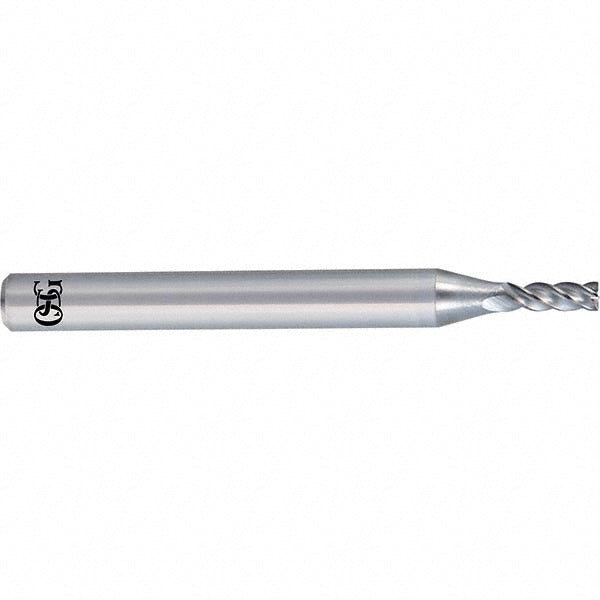

0.1575" 4-Flute Solid Carbide Square End Mill, Duarise - OSG 8555840

OSG

0.1575" 4-Flute Solid Carbide Square End Mill, Duarise - OSG 8555840

MFR# 8555840Series 8205

$46.85List $60.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingDuarise

Description

The OSG 8555840 is a 0.1575 4-flute Solid Carbide (Micrograin) square end mill with a Duarise finish for longer tool life. Series 8205.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDuarise
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeStraight
Length of cut (mm)11
Length typeRegular
Material gradeMicrograin
Mill diameter0.1575
Mill diameter tolerance+0.00/-0.02 mm
Number of flutes4
Overall length (mm)60
Shank diameter0.2362
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
