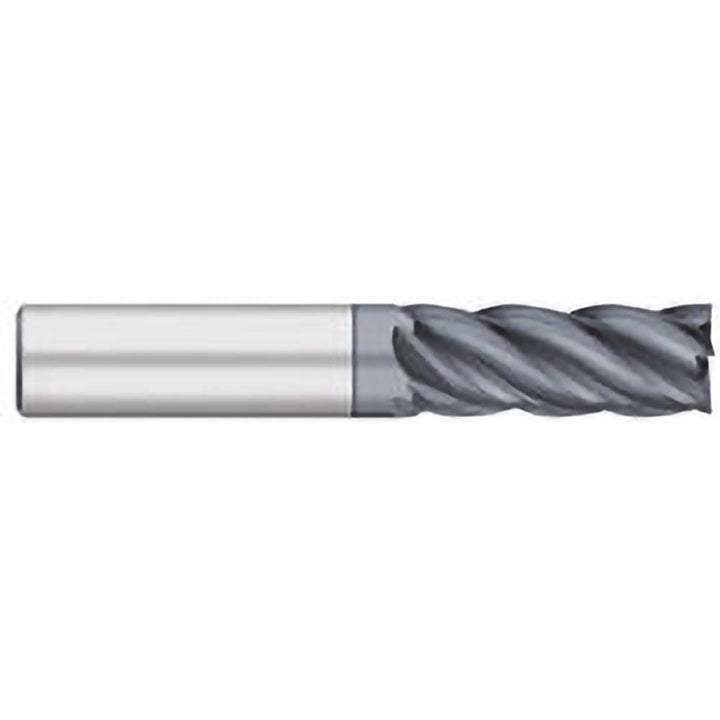

3/8" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25840

Titan USA

3/8" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25840

MFR# TC25840

$50.94List $65.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC25840 is a 3/8 5-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 1 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishALCRO-MAX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in3/8
Number of flutes5
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Seco0.3750" 5-Flute Solid Carbide Roughing End Mill, AlTiN - Seco 17007604 $125.53 Iscar3/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398370 $78.56 Widia3/8" 5-Flute Solid Carbide Corner Radius End Mill, WS15PE - Widia 6146548 $91.13 Helical Solutions3/8" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 59402 $81.12
