Widia

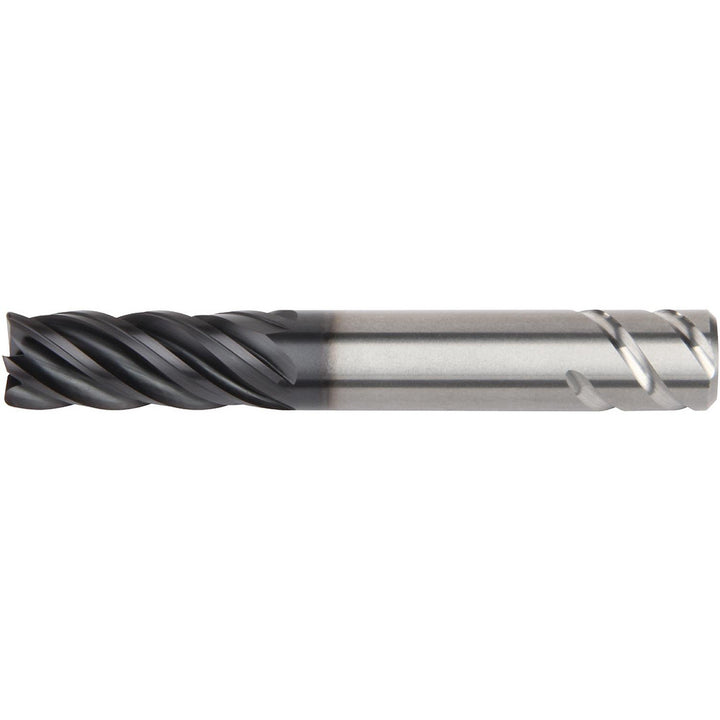

3/8" 5-Flute Solid Carbide Corner Radius End Mill, WS15PE - Widia 6146548

MFR# 6146548Series 5V0E

$91.13List $116.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingWS15PE

Description

The Widia 6146548 is a 3/8 5-flute Solid Carbide (WS15PE) corner radius end mill with a WS15PE finish for longer tool life. Suited for high temperature alloy. 1 length of cut, 2-1/2 overall length. Series 5V0E.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWS15PE

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1

Length typeRegular

Material applicationSteel; Stainless Steel; High-Temperature Alloy; Hard Material

Material gradeWS15PE

Material removal typeRoughing & Finishing

Mill diameter in3/8

Number of flutes5

Overall length in2-1/2

PitchClose

Primary workpiece materialHigh Temperature Alloy

Reach length in1

Secondary workpiece materialSteel; Stainless Steel; Hard Material

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
