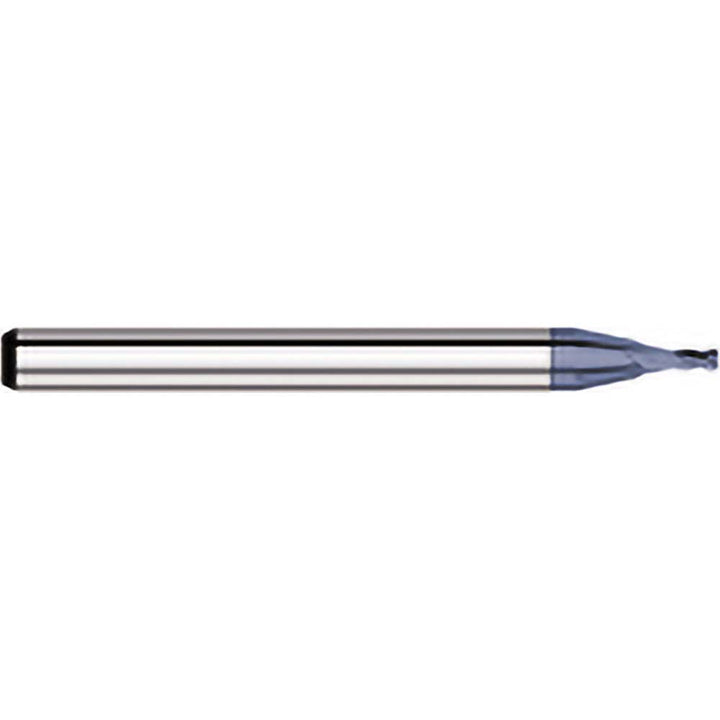

0.0600" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC54260

Titan USA

0.0600" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC54260

MFR# TC54260

$24.61List $31.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC54260 is a 0.0600 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.09 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut0.09
Material gradeMicrograin
Mill diameter0.0600
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
