SGS

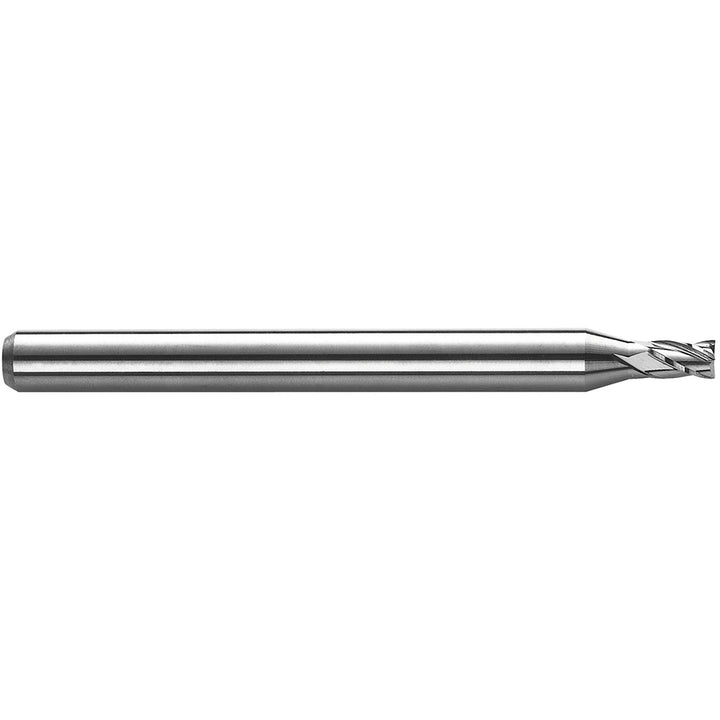

0.0600" 4-Flute Solid Carbide Square End Mill - SGS 00427
MFR# 00427
$15.58List $19.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Description
The SGS 00427 is a 0.0600 4-flute Solid Carbide (Micrograin) square end mill. 0.09 length of cut, 1-1/2 overall length.
Specifications
CentercuttingYes
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.09
Length of cut range0.0000 - 0.1000
Length typeRegular
Material gradeMicrograin
Mill diameter0.0600
Mill diameter tolerance+0.000 to -0.001 in
Number of flutes4
Overall length in1-1/2
Overall length tolerance+0.062/-0.062 in
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
