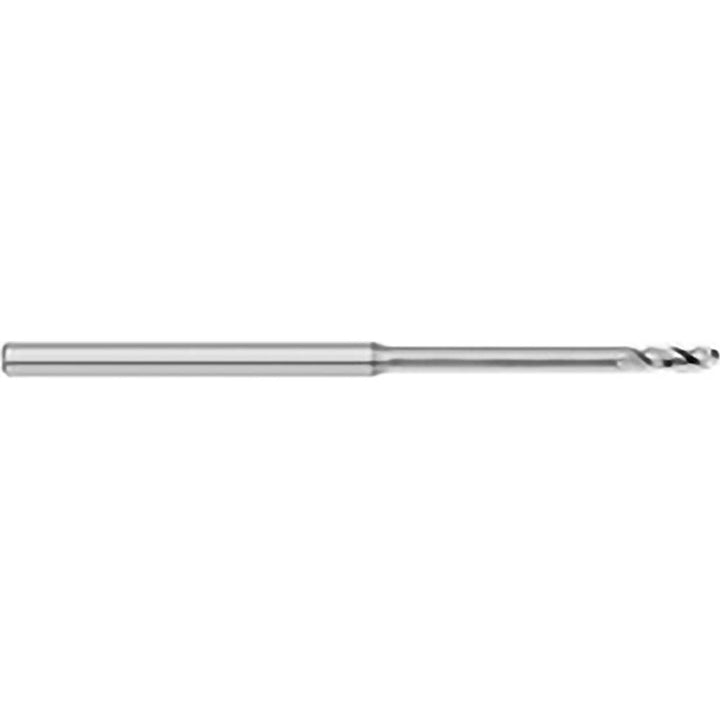

1/64" 3-Flute Solid Carbide Ball End Mill - Titan USA TC58412

Titan USA

1/64" 3-Flute Solid Carbide Ball End Mill - Titan USA TC58412

MFR# TC58412Series 3 Flute - Ball - 30 Helix - Long Reach, Regular Flute, Micro Milling

$48.67List $58.45 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/64
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Titan USA TC58412 is a 1/64 3-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 2-1/2 overall length. Series 3 Flute - Ball - 30 Helix - Long Reach, Regular Flute, Micro Milling.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length typeStandard
Manufacturers catalog numberTC58412
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/64
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.0750
Nose radius0.0075
Number of flutes3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length0.1200
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
