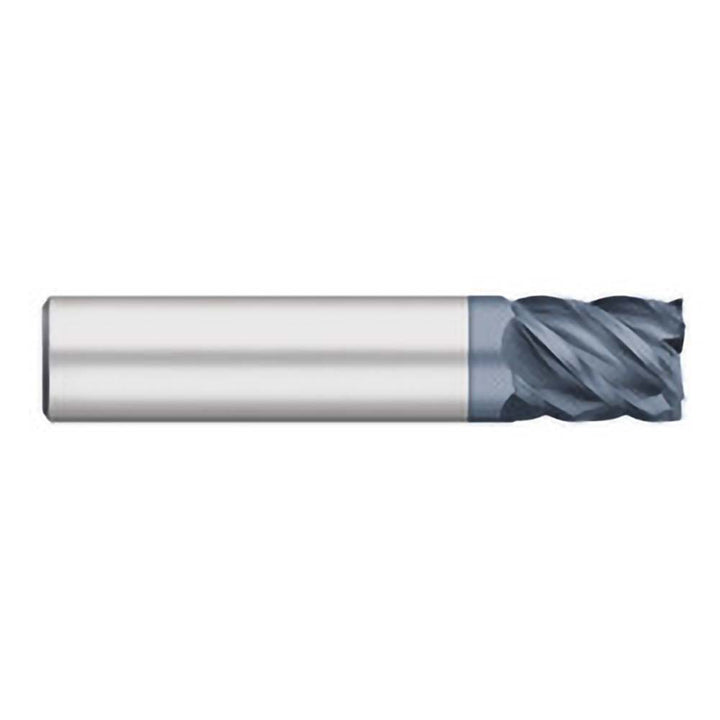

1/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC61508

MFR# TC61508

$12.18List $15.62 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Titan USA TC61508 is a 1/8 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1/4 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle45

Length of cut in1/4

Length of cut range0.2000 - 0.3000

Material gradeMicrograin

Mill diameter in1/8

Number of flutes5

Overall length in1-1/2

Shank diameter in1/8

Variable helixNo

Variable indexNo
