1/8" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32672

SGS

1/8" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32672

MFR# 32672Series 55

$25.36List $32.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

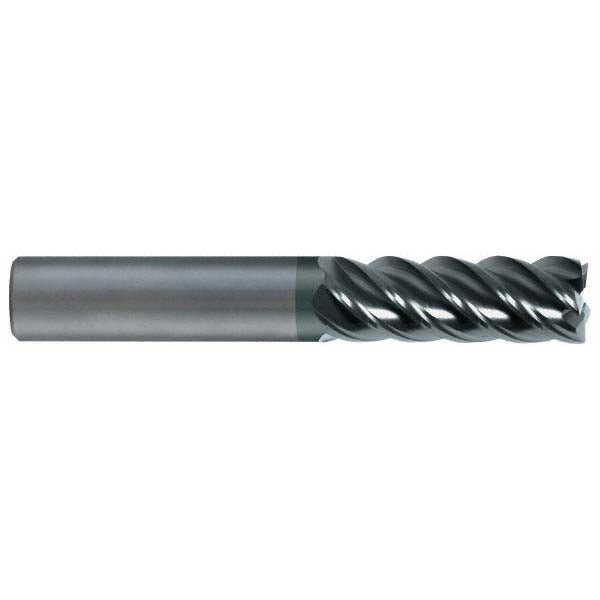

The SGS 32672 is a 1/8 5-flute Solid Carbide (Micrograin) square end mill. 1/4 length of cut, 1-1/2 overall length. Series 55.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1/4
Length of cut range0.2000 - 0.3000
Length typeStub
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes5
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
