Titan USA

3/8" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC65491

MFR# TC65491Series TC

$39.22List $47.94 Save 18%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

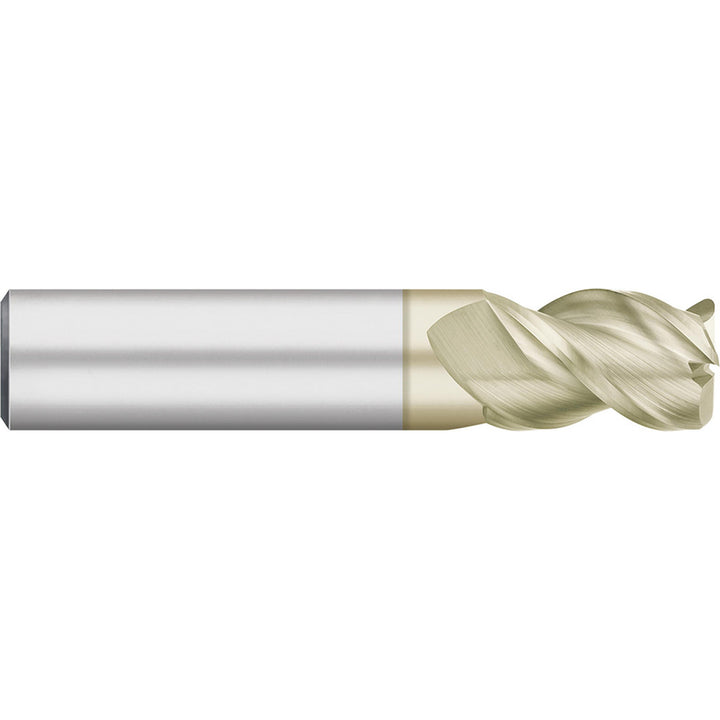

The Titan USA TC65491 is a 3/8 3-flute Solid Carbide corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 5/8 length of cut, 2 overall length. Series TC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in5/8

Material applicationNon-Ferrous Metal; Aluminum; Brass; Bronze

Material removal typeRoughing

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes3

Overall length in2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in5/8

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
