ProMax

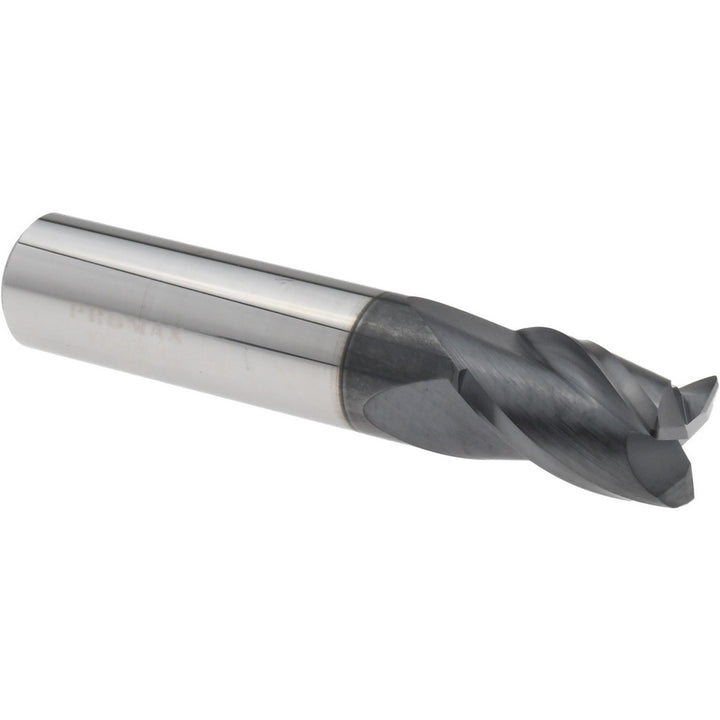

3/8" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 106-02424

MFR# 106-02424Series 106

$58.15List $72.79 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 106-02424 is a 3/8 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 2 overall length. Series 106.

Specifications

CentercuttingYes

Coating finishAlTiN

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in5/8

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes3

Overall length in2

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Single or double endSingle

Variable indexNo
