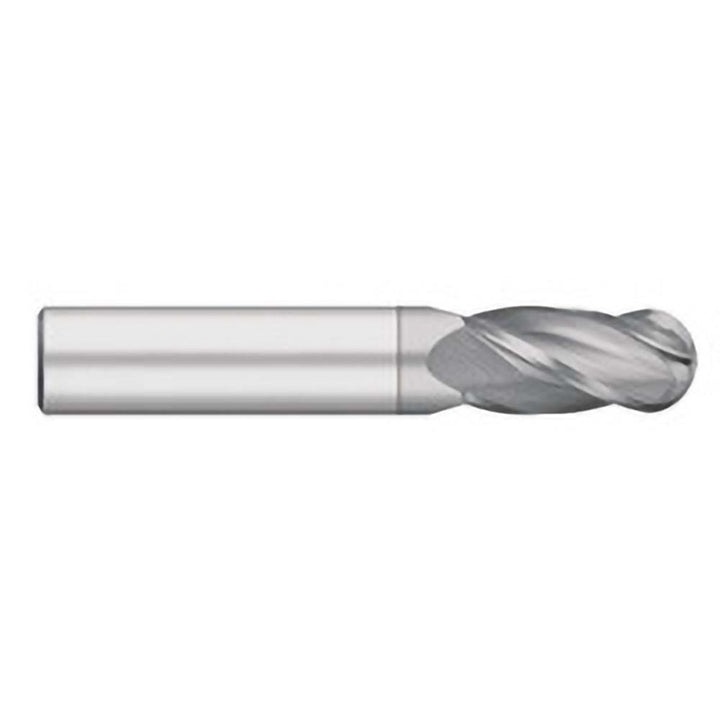

1/32" 4-Flute Solid Carbide Ball End Mill, TiCN - Titan USA TC91502

MFR# TC91502Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills

$18.06List $23.16 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/32

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The Titan USA TC91502 is a 1/32 4-flute Solid Carbide (Carbide) ball end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 1/8 length of cut, 1-1/2 overall length. Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Coating finish familyTiCN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1/8

Length typeStandard

Manufacturers catalog numberTC91502

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/32

Mill diameter tolerance+0.0000/-0.0010 in

Nose radius0.0157

Number of flutes4

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy

Reach length in1/8

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
