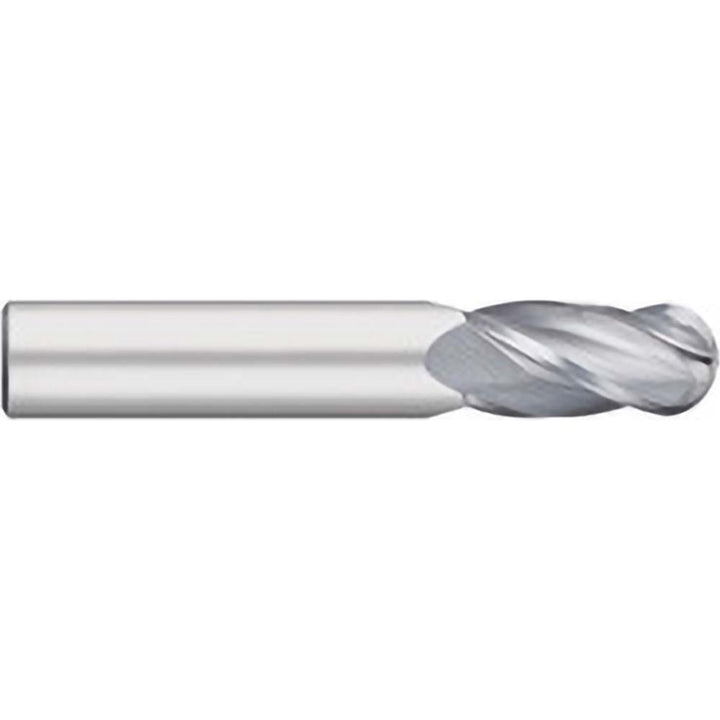

1/32" 4-Flute Solid Carbide Ball End Mill - Titan USA TC11502

Titan USA

1/32" 4-Flute Solid Carbide Ball End Mill - Titan USA TC11502

MFR# TC11502Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills

$14.19List $17.88 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/32
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Titan USA TC11502 is a 1/32 4-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 1/8 length of cut, 1-1/2 overall length. Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1/8
Length typeStandard
Manufacturers catalog numberTC11502
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/32
Mill diameter tolerance+0.0000/-0.0010 in
Nose radius0.0157
Number of flutes4
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Reach length in1/8
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
