Tungaloy

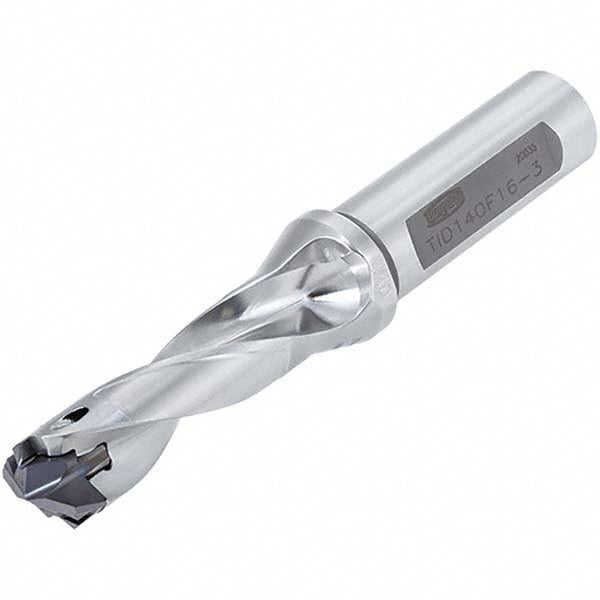

Indexable Drilling - Tungaloy 6723443
MFR# 6723443Series DrillMeister
$567.77
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Tungaloy 6723443 indexable drilling. Series DrillMeister.
Specifications
Body length3.968
Compatible insert styleDMP210; DMP211; DMP212; DMP213; DMP214; DMP215; DMP216; DMP217; DMP218; DMP219
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.5980
Maximum drill depth2.5980
Maximum drill diameter0.9020
Minimum drill diameter0.8660
Overall length6.173
Shank diameter in1
Shank length2.2050
Shank typeWeldon Flat
Toolholder styleTID L/D=3
Tool applicationDrilling; Holemaking
