Walter-Prototyp
1/4" 2-Flute Solid Carbide Ball End Mill, TiAlN - Walter-Prototyp 5543782
MFR# 5543782
$106.41List $136.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description

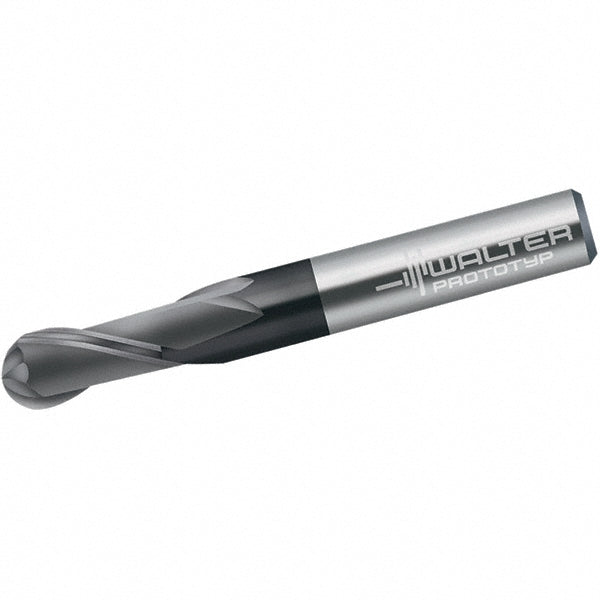

The Walter-Prototyp 5543782 is a 1/4 2-flute Solid Carbide (A0706) ball end mill with a TiAlN finish for longer tool life. 1/4 length of cut.
Specifications
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/4
Length typeRegular
Material gradeA0706
Mill diameter in1/4
Mill diameter toleranceh7
Nose radius0.1250
Number of flutes2
Overall length (mm)63.50
Overall length tolerance+2.00 mm
Shank diameter in1/4
Shank diameter toleranceh5
Single or double endSingle
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
