Walter-Prototyp

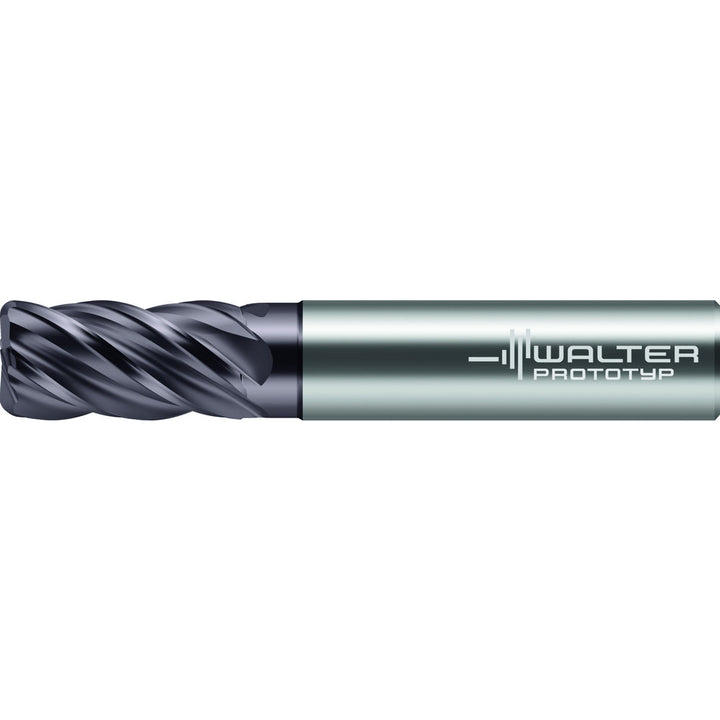

1/4" 5-Flute Solid Carbide Corner Radius End Mill, TiAlN/THL - Walter-Prototyp 8415105

MFR# 8415105Cat# MA230.6.35A5D038E-WJ30TFSeries MA230.A-5-R-C

$55.60List $71.30 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingTiAlN/THL

Description

The Walter-Prototyp 8415105 is a 1/4 5-flute Solid Carbide corner radius end mill with a TiAlN/THL finish for longer tool life. Suited for steel. 3/4 length of cut, 2-1/2 overall length. Series MA230.A-5-R-C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN/THL

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Length of cut in3/4

Manufacturers catalog numberMA230.6.35A5D038E-WJ30TF

Material removal typeRoughing & Finishing

Mill diameter in1/4

Number of flutes5

Overall length in2-1/2

Primary workpiece materialSteel

Reach length1.3976

Secondary workpiece materialCast Iron; Stainless Steel; Superalloys & Titanium

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
