Iscar

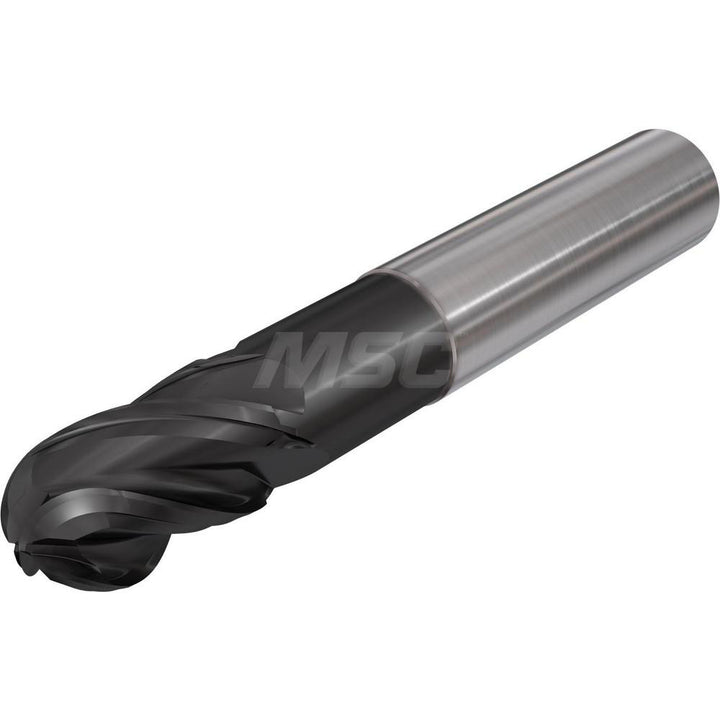

1/4" 5-Flute Solid Carbide Ball End Mill, TiAlCN - Iscar 3398471

MFR# 3398471Cat# EBI-5 .25-1.CVF3.Series Flash Solid

$46.51List $55.70 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingTiAlCN

Description

The Iscar 3398471 is a 1/4 5-flute Solid Carbide ball end mill with a TiAlCN finish for longer tool life. 1 length of cut, 3 overall length. Series Flash Solid.

Specifications

Coating finishTiAlCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1

Manufacturers catalog numberEBI-5 .25-1.CVF3.

Mill diameter in1/4

Number of flutes5

Overall length in3

Shank diameter in1/4

Single or double endSingle

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
