Walter-Prototyp

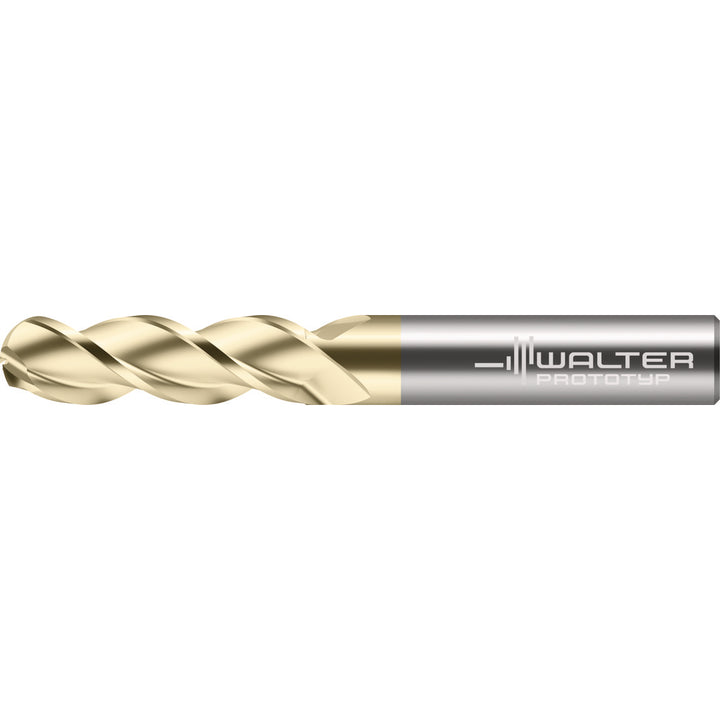

1/8" 3-Flute Solid Carbide Ball End Mill, ZrN - Walter-Prototyp 8418335

MFR# 8418335Cat# MA467.3.18A3DJ-WJ30CDSeries MA467

$59.97List $76.91 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The Walter-Prototyp 8418335 is a 1/8 3-flute Solid Carbide (WJ30CD) ball end mill with a ZrN finish for longer tool life. 3/8 length of cut, 2 overall length. Series MA467.

Specifications

ChipbreakerNo

Coating finishZrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle39

Helix styleMedium

Length of cut in3/8

Length typeExtended

Manufacturers catalog numberMA467.3.18A3DJ-WJ30CD

Material gradeWJ30CD

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter toleranceh7

Neck length0.9950

Nose radius0.0625

Number of flutes3

Overall length in2

Reach length1.3700

Secondary workpiece materialNon-Ferrous Metal

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
