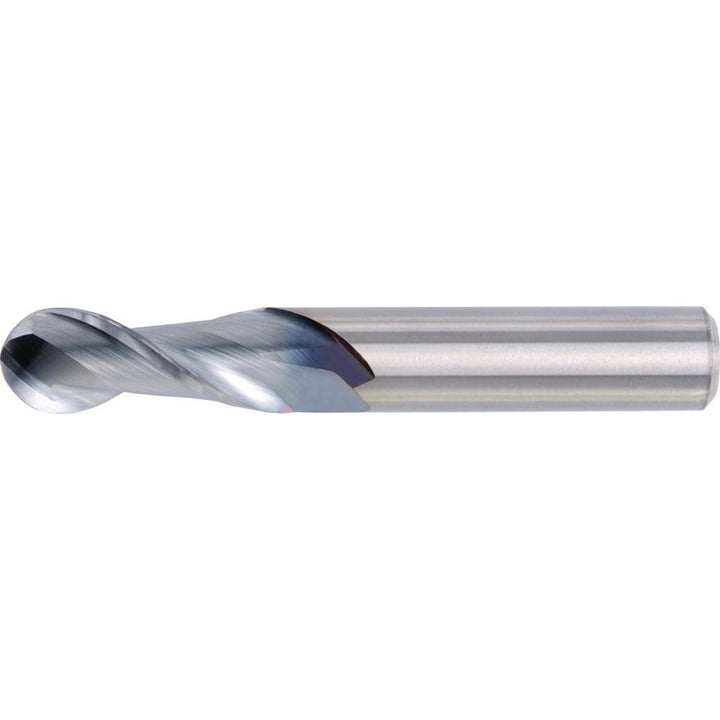

1/4" 2-Flute Solid Carbide Ball End Mill - Widia 2864573

Widia

1/4" 2-Flute Solid Carbide Ball End Mill - Widia 2864573

MFR# 2864573Cat# 4A0107002Series 4A01

$48.73List $62.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Widia 2864573 is a 1/4 2-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 4A01.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Helix styleMedium
Length of cut in3/4
Length typeStandard
Manufacturers catalog number4A0107002
Material removal typeRoughing & Finishing
Mill diameter in1/4
Neck length0.0000
Nose radius0.1250
Number of flutes2
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Reach length in3/4
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
