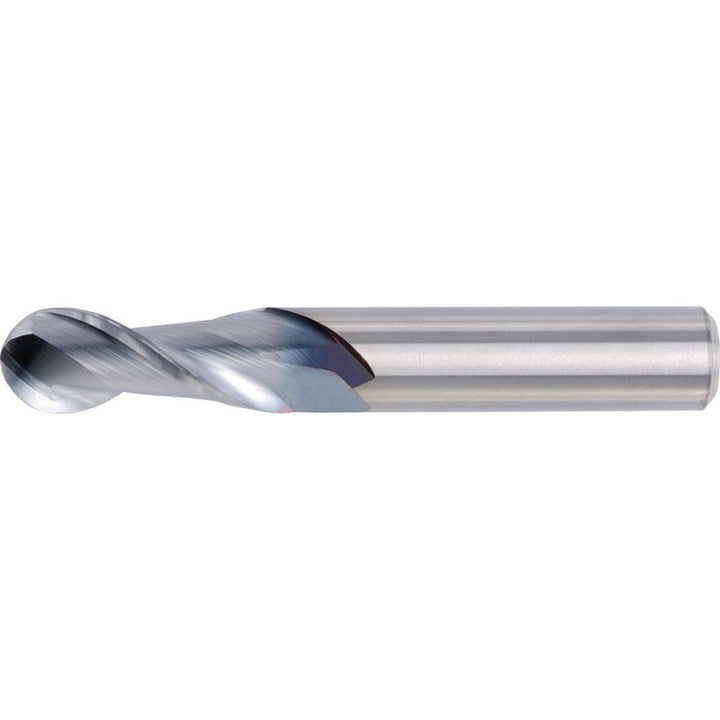

1/8" 2-Flute Solid Carbide Ball End Mill - Widia 2864580

Widia

1/8" 2-Flute Solid Carbide Ball End Mill - Widia 2864580

MFR# 2864580Cat# 4A0103001Series 4A01

$26.17List $33.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Widia 2864580 is a 1/8 2-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 1/2 length of cut, 2 overall length. Series 4A01.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Helix styleMedium
Length of cut in1/2
Length typeStandard
Manufacturers catalog number4A0103001
Material removal typeRoughing & Finishing
Mill diameter in1/8
Neck length0.0000
Nose radius0.0625
Number of flutes2
Overall length in2
Primary workpiece materialNon-Ferrous Metal
Reach length in1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
