Widia

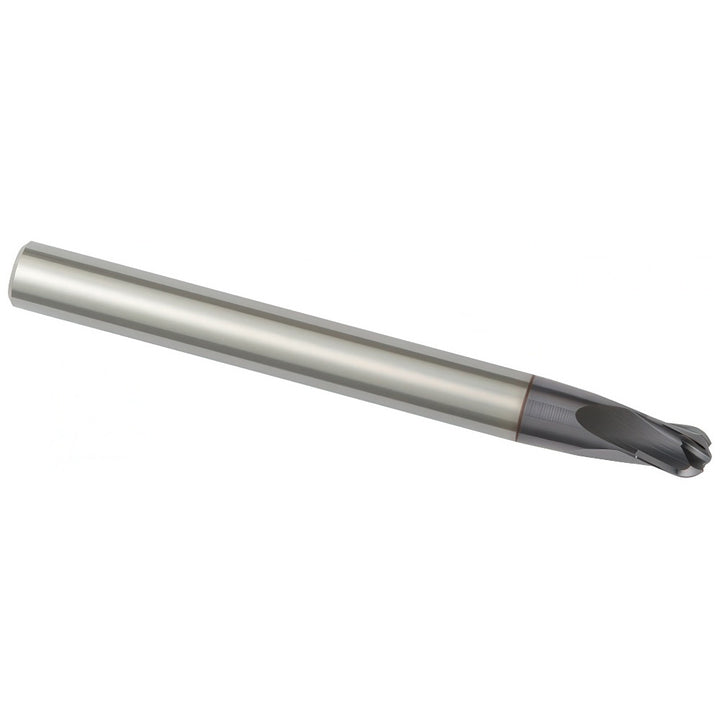

1/4" 4-Flute Solid Carbide Ball End Mill, AlTiN - Widia 3058580

MFR# 3058580Cat# TM7S5F07004Series 7S5F

$149.75List $192.06 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Widia 3058580 is a 1/4 4-flute Solid Carbide (AlTiN-MT1) ball end mill with a AlTiN finish for longer tool life. 1/4 length of cut, 4 overall length. Series 7S5F.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle15

Helix styleLow

Length of cut in1/4

Length typeStandard

Manufacturers catalog numberTM7S5F07004

Material gradeAlTiN-MT1

Material removal typeRoughing & Finishing

Mill diameter in1/4

Neck length0.0000

Nose radius0.1250

Number of flutes4

Overall length in4

Reach length in1/4

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
