Widia

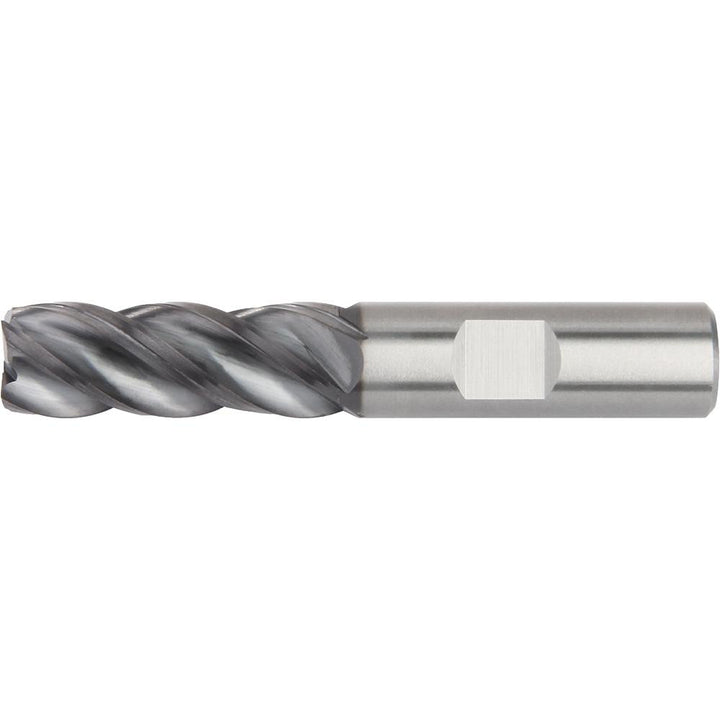

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Widia 5576347

MFR# 5576347Cat# 4V0505000NTSeries 4V05

$38.42List $49.27 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Widia 5576347 is a 3/16 4-flute Solid Carbide (WP15PE) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8 length of cut, 2-1/4 overall length. Series 4V05.

Specifications

CentercuttingYes

Chamfer angle45

Chamfer length0.0100

Chamfer width0.0100

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut in5/8

Length typeRegular

Manufacturers catalog number4V0505000NT

Material gradeWP15PE

Material removal typeRoughing & Finishing

Mill diameter in3/16

Number of flutes4

Overall length in2-1/4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in5/8

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in3/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
