Widia

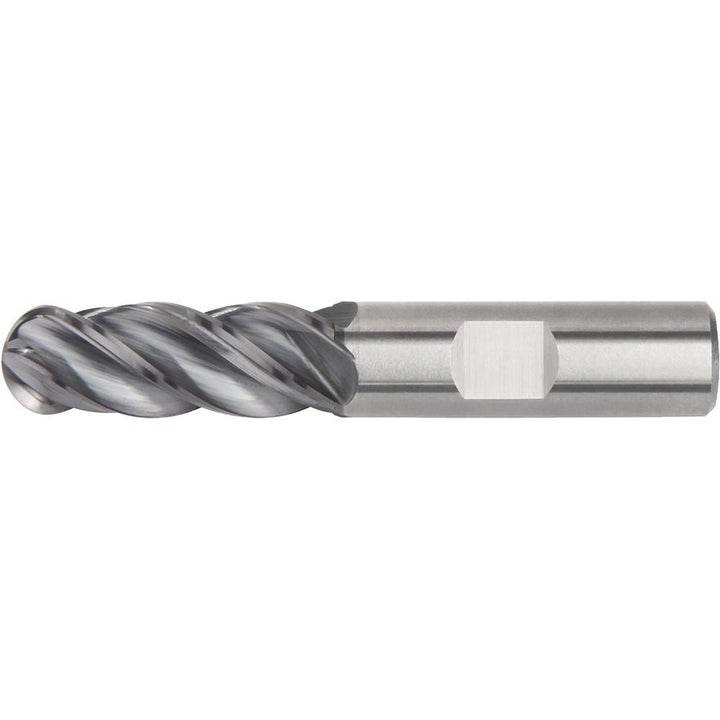

1" 4-Flute Solid Carbide Ball End Mill, AlTiN - Widia 5576666

MFR# 5576666Cat# 4V0025008XWSeries 4V00

$578.88List $742.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Widia 5576666 is a 1 4-flute Solid Carbide (WP15PE) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1-1/2 length of cut, 4 overall length. Series 4V00.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Helix styleMedium

Length of cut in1-1/2

Length typeStandard

Manufacturers catalog number4V0025008XW

Material gradeWP15PE

Material removal typeRoughing & Finishing

Mill diameter in1

Neck length0.0000

Nose radius0.5000

Number of flutes4

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Reach length in1-1/2

Shank diameter in1

Shank typeWeldon Flat

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
