Widia

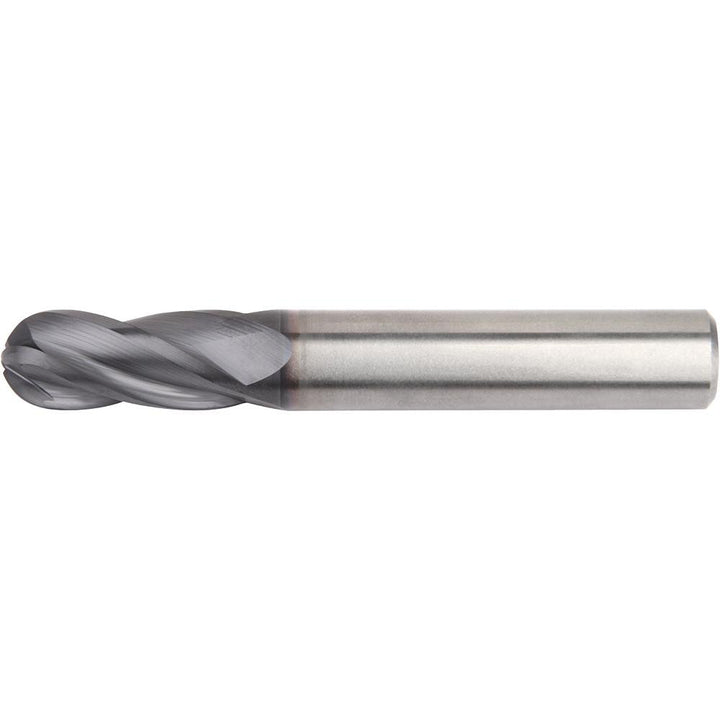

3/32" 4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 5825628

MFR# 5825628Cat# I4B0094T019RSeries I4B

$16.20List $20.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/32

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Widia 5825628 is a 3/32 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 3/16 length of cut, 1-1/2 overall length. Series I4B.

Specifications

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3/16

Length typeStandard

Manufacturers catalog numberI4B0094T019R

Material gradeTiAlN

Material removal typeRoughing & Finishing

Mill diameter in3/32

Neck length0.0000

Nose radius0.0469

Number of flutes4

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Reach length in3/16

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
