Widia

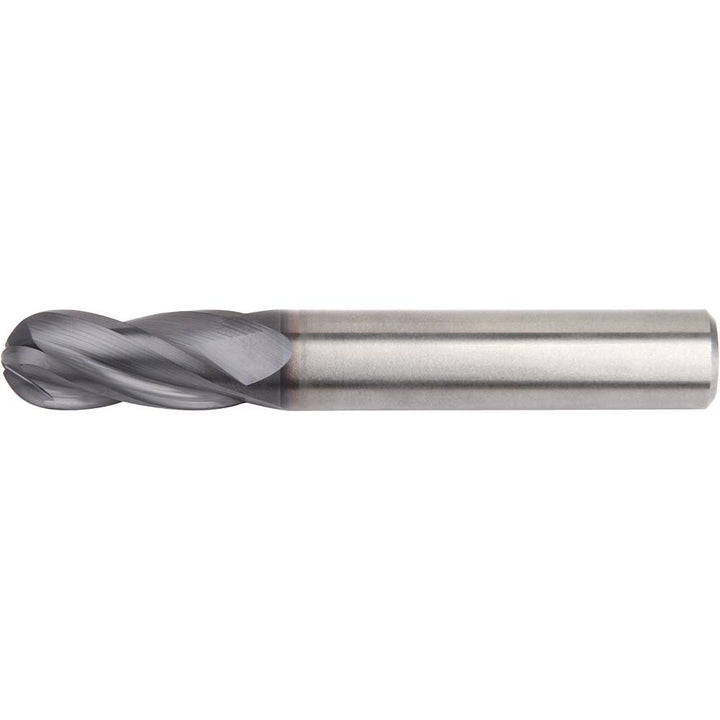

1/4" 4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 5825663

MFR# 5825663Cat# I4B0250T075RSeries I4B

$31.65List $40.59 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Widia 5825663 is a 1/4 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy, hardened materials. 3/4 length of cut, 2-1/2 overall length. Series I4B.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3/4

Length typeStandard

Manufacturers catalog numberI4B0250T075R

Material gradeTiAlN

Material removal typeRoughing & Finishing

Mill diameter in1/4

Neck length0.0000

Nose radius0.1250

Number of flutes4

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy; Hardened Materials

Reach length in3/4

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
