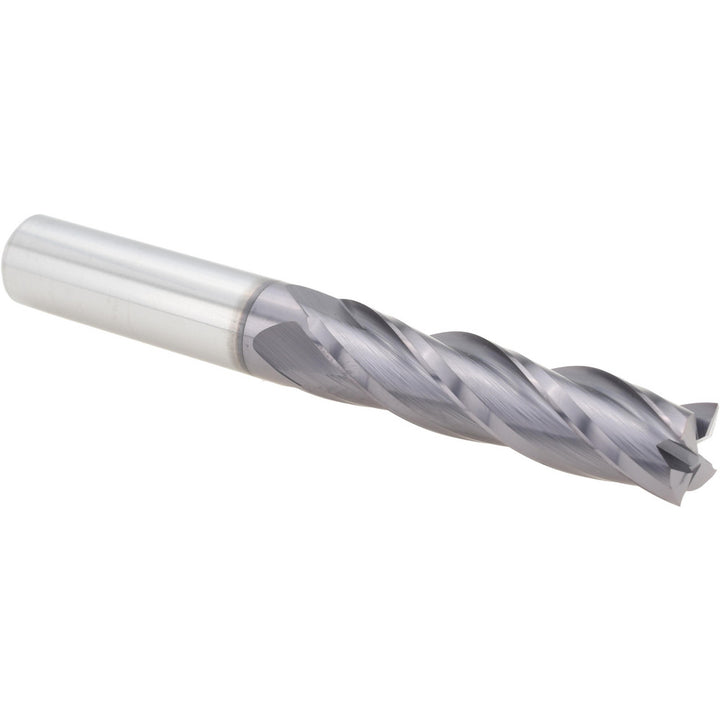

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - YG-1 08593TF

YG-1

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - YG-1 08593TF

MFR# 08593TFSeries E5012

$117.95List $151.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The YG-1 08593TF is a 1/2 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel. 2 length of cut, 4 overall length. Series E5012.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in4
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal
Shank diameter in1/2
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
